Description

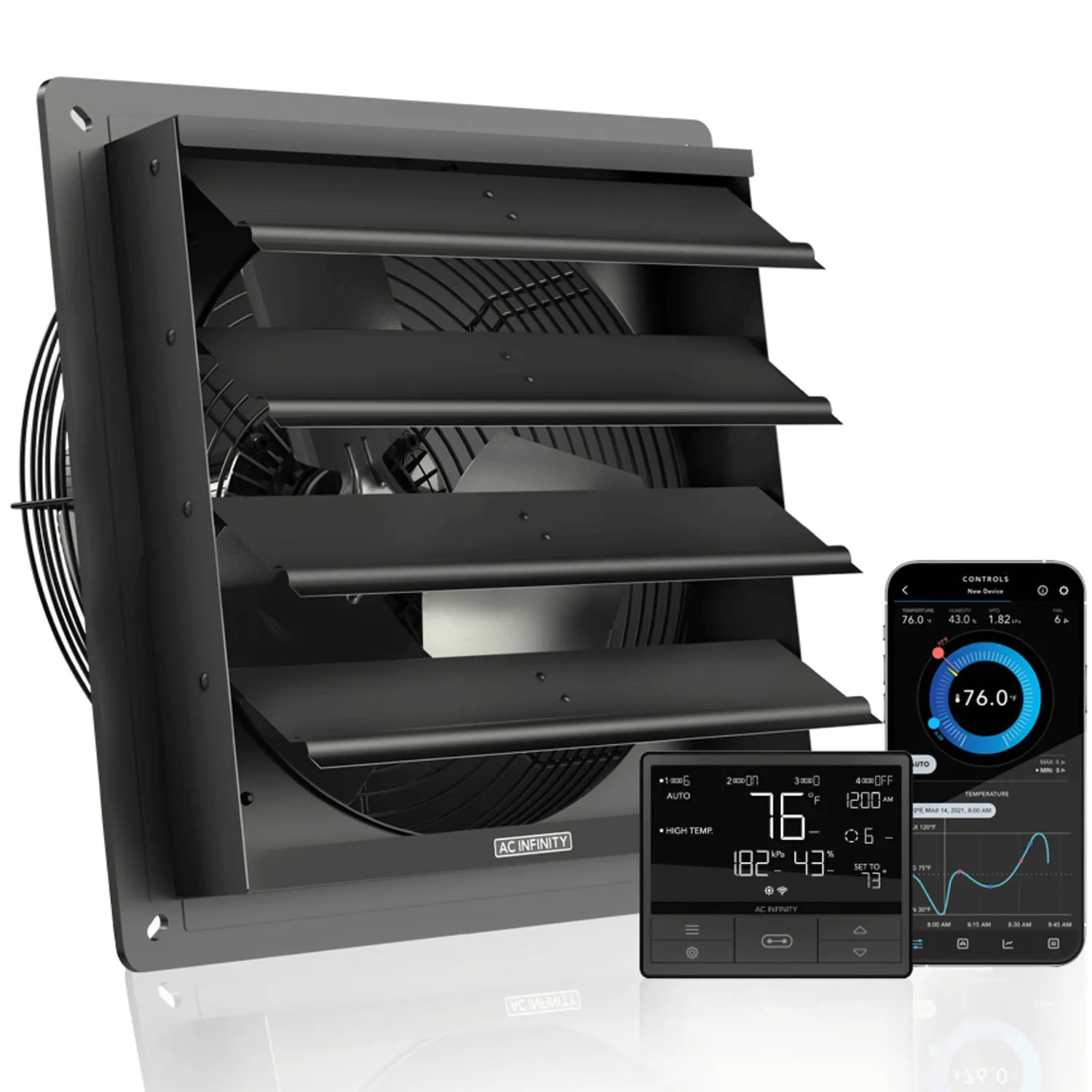

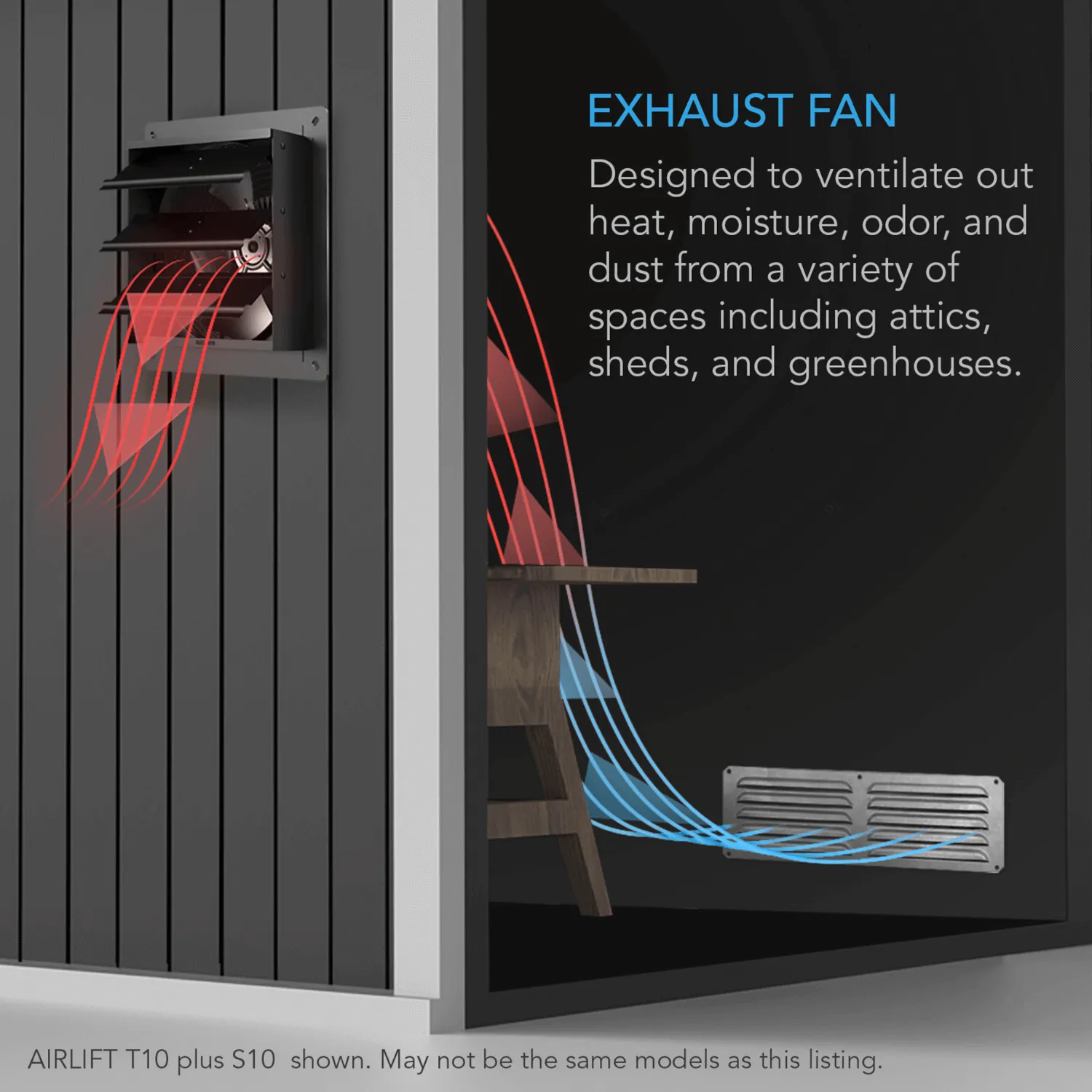

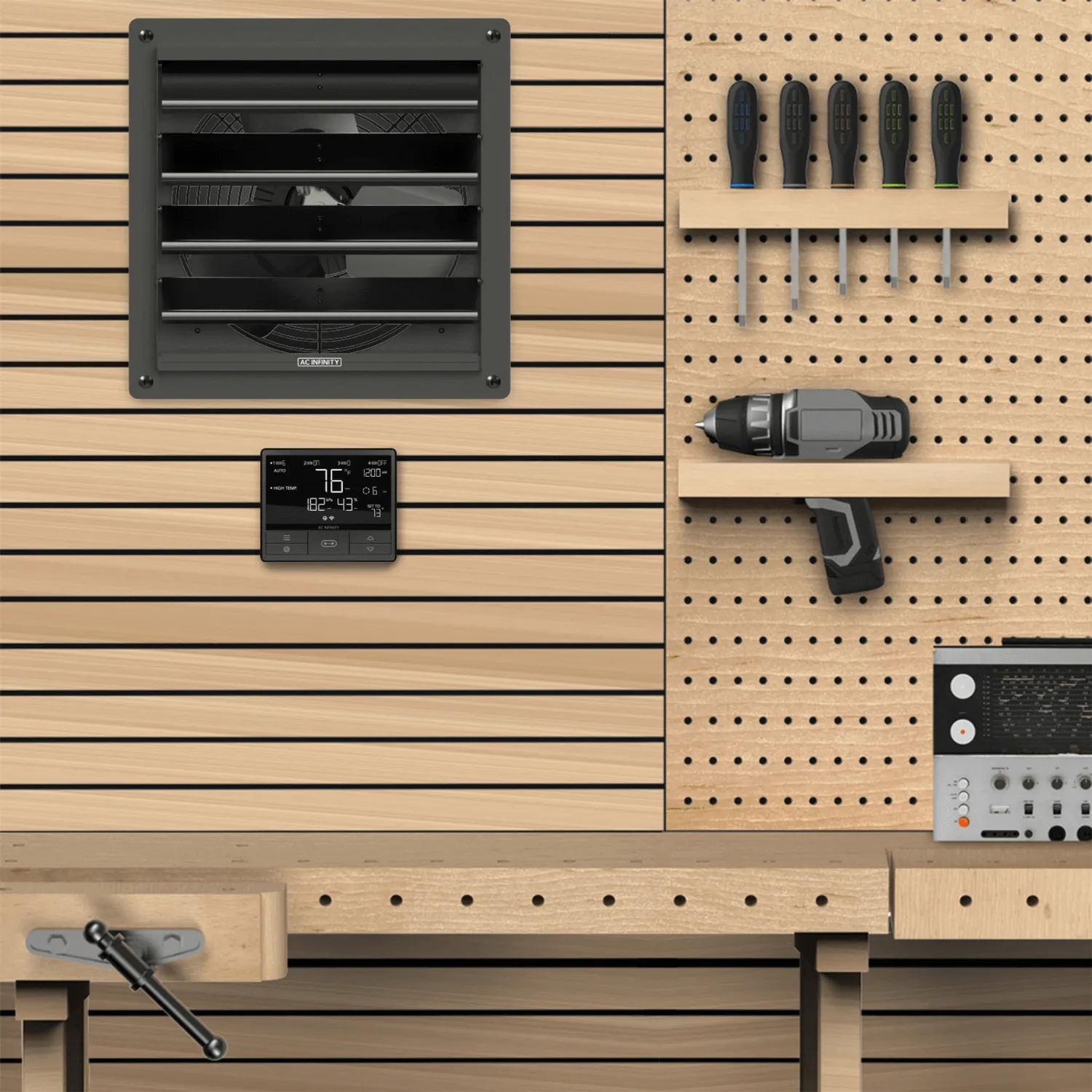

High-Airflow Exhaust Fan: Specially designed to ventilate heat, moisture, odor, and dust from a variety of spaces such as greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate environment pollutants from enclosures, rooms, and buildings.

Smart Control: Features dynamic temperature and humidity programming, including timers, grow cycles, scheduling, and minimum speed. You can remotely connect via a WiFi app to access advanced programs, alarms, notifications and view climate data.

Construction: The fan features steel shutters and aluminum blades. It is also IP-44 rated, signifying high resistance to liquid and dust, making this fan suitable for use in harsh environments.

Fan Specifications: Fan size measures 12 inches. Overall dimensions are 15.75 x 15.75 x 8.14 inches. Provides a powerful airflow up to 830 CFM and operates at a 62 dBA noise level. Fitted with dual ball bearings.

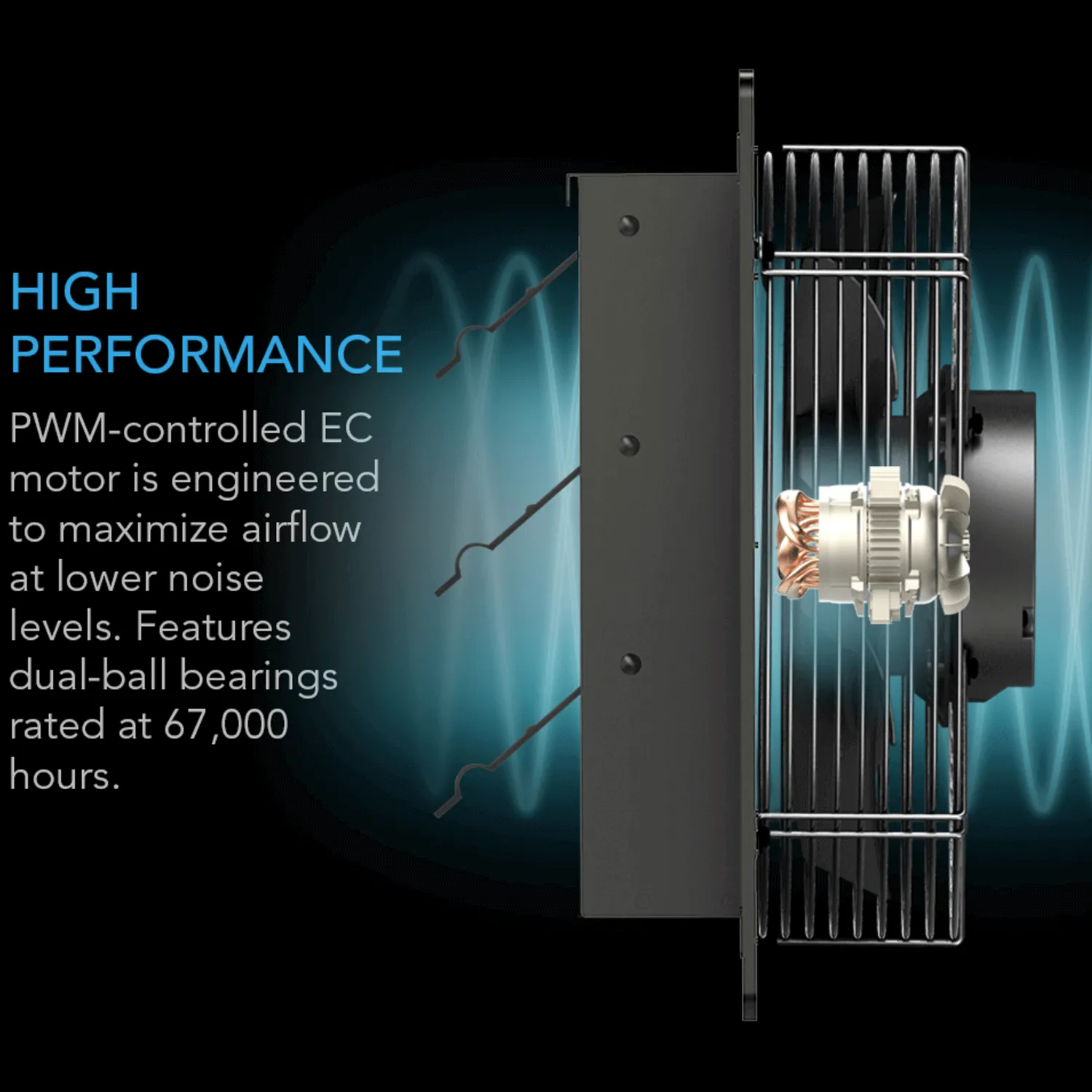

Heavy-duty Performance: Features weather and corrosion-resistant steel shutters that automatically close when not in use. The blades and impeller are constructed from lightweight aluminum, weight-balanced to minimize vibrations. Uses an innovative EC motor controlled electronically via Pulse Width Modulation (PWM) to optimize airflow while reducing noise and power consumption. The fully enclosed motor is permanently lubricated and houses dual-ball bearings rated at 67,000 hours.

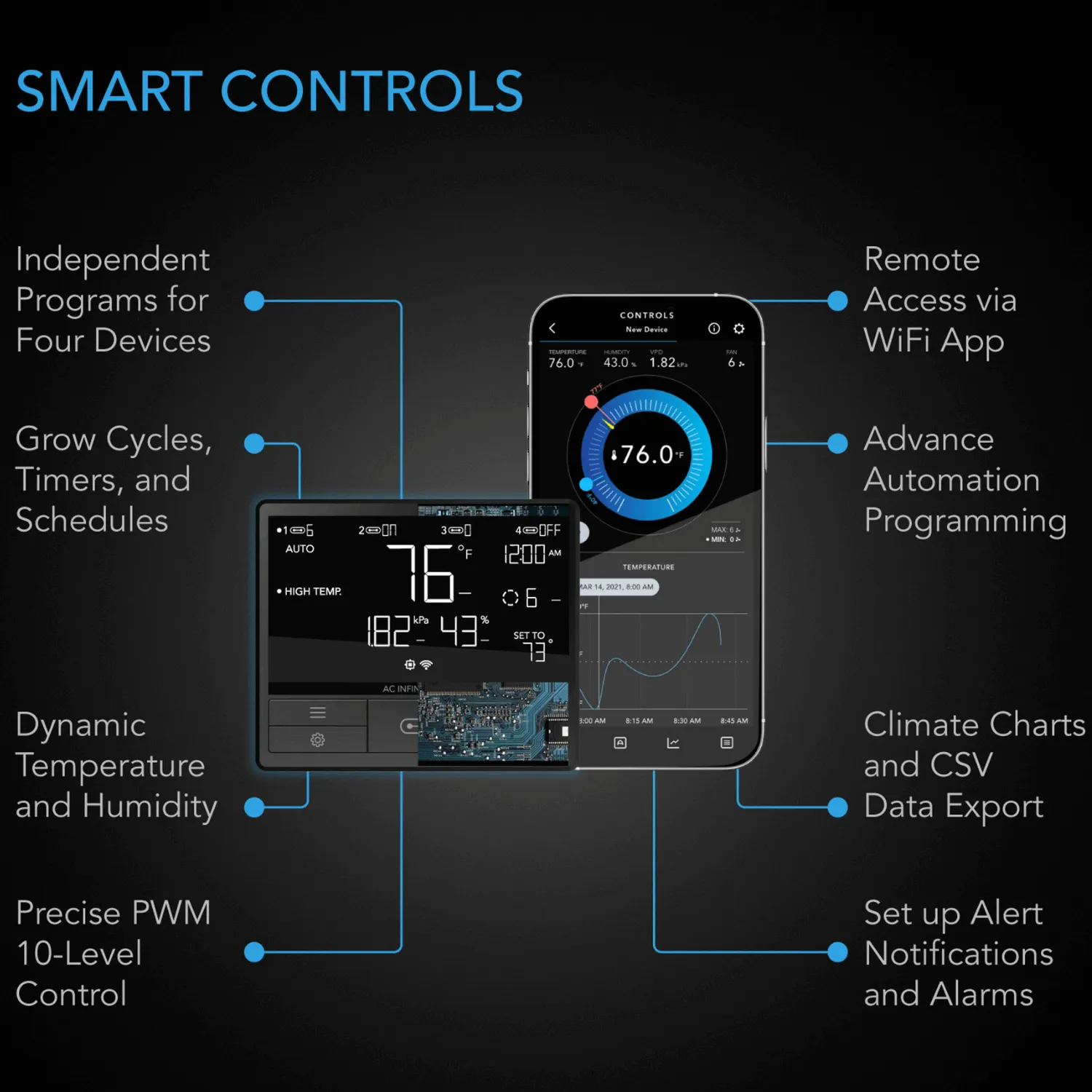

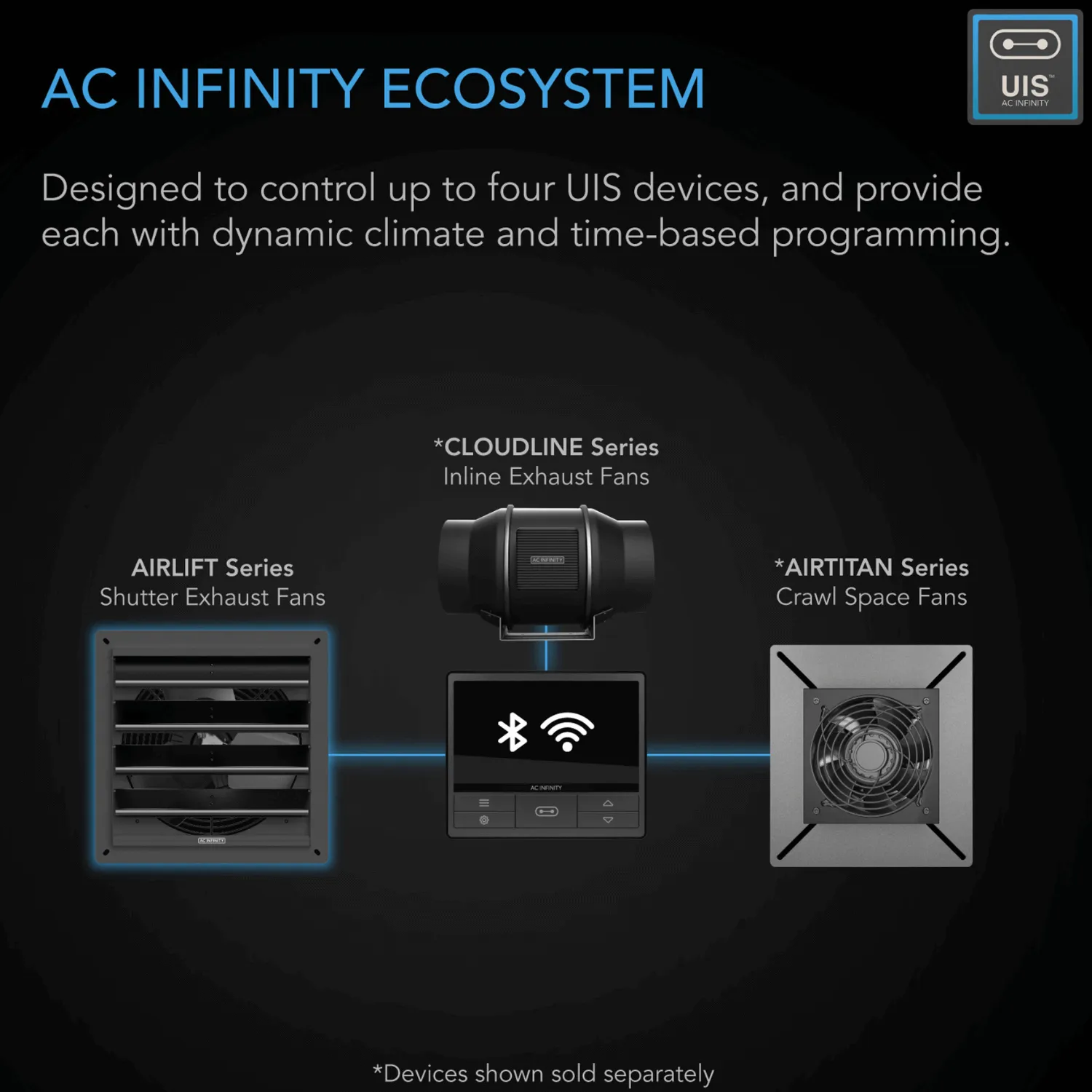

Smart Controller Benefits: CONTROLLER 69 PRO features smart programming that enables basic temperature, humidity, and VPD triggers. It also allows setting of dynamic fan speeds that respond according to their changes. Offers timer, cycle, and schedule modes for custom on-demand activation suitable for various uses. Connect securely to the AC Infinity app via WiFi for remote accessibility, advanced programs, notifications, historical climate charts, and CSV data exportation. This controller is compatible with AIRLIFT Series shutter fans, CLOUDLINE Series inline fans, and AIRTITAN Series crawlspace fans.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: AIRLIFT T12

Product Model: AC-ALT12

UPC Code: 819137020917

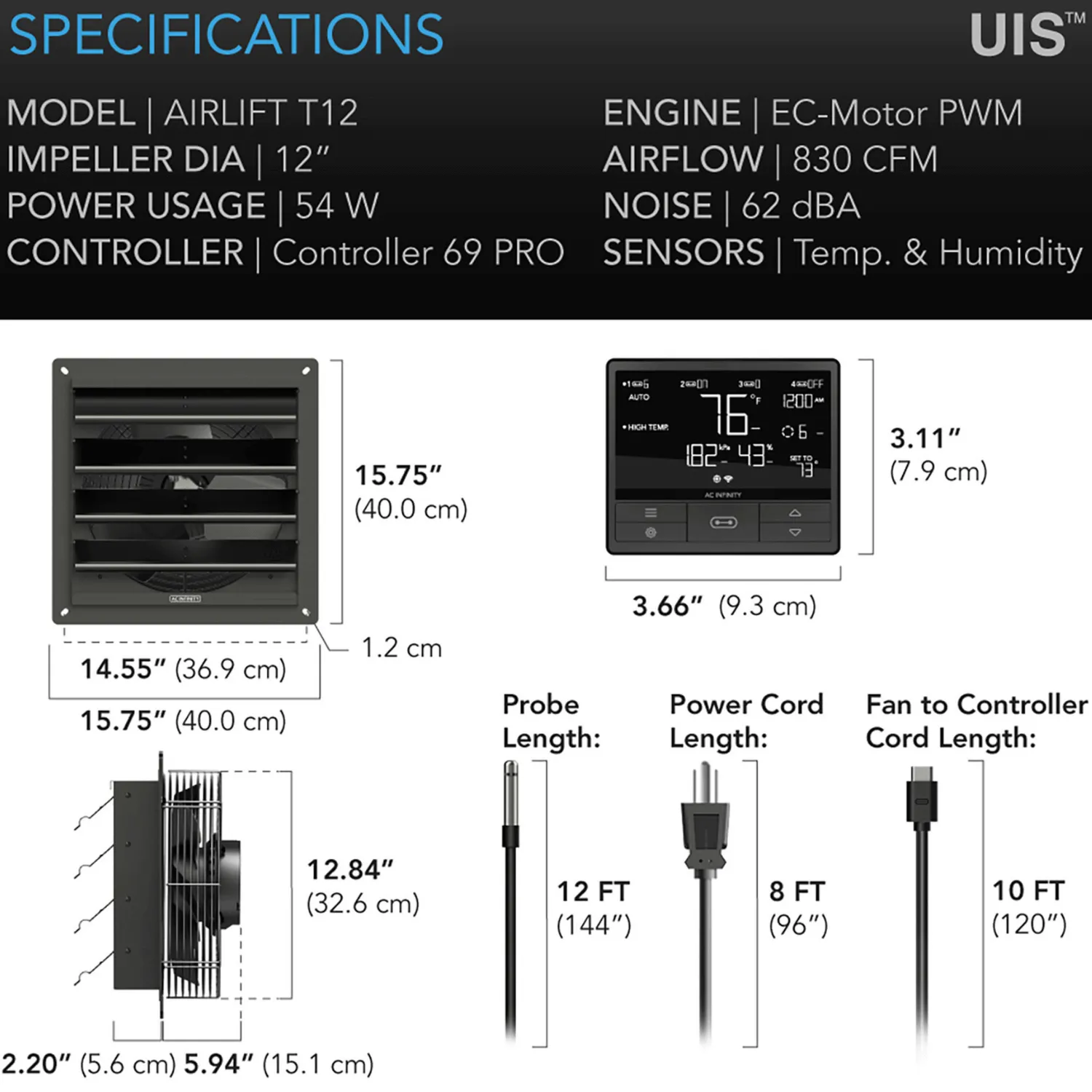

Product and Mounting Dimensions - Fan Unit

Total Dimensions: 15.75 x 15.75 x 8.14 in. (33.0 x 33.0 x 20.7 cm)

Frontside Enclosure Dimensions: 13.38 x 13.38 x 2.20 in. (34.0 x 34.0 x 5.6 cm)

Required Mounting Hole: 13.54 x 13.54 in. (34.4 x 34.4 cm)

Hole to Hole Distance: 14.21 x 14.21 in. (36.1 x 36.1 cm)

Screw Hole Size: Ø 0.27 in (Ø 0.7 cm)

Cord Length to Controller: 240 in (20 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 3.66 x 3.11 x 0.98 in. (9.3 x 7.9 x 2.5 cm)

Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)

Cord Length to Plug: 96 in (8 feet)

Product Performance and Technical Specs

Total Airflow: 830 CFM

Total Noise: 62 dBA

Static Pressure: 73 Pa

Operating Voltage: 100-240V AC

Power: 54W

Current: 1.0A

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheets

Download the product manual:

Download the CE Certification:
